Demonstration
In this demonstration, we present the basic step to access an HPC cluster, prepare a simple job and run it on compute nodes. The test system used is the Supek supercomputer operated by the University Computing Centre of the University of Zagreb. In this session we will run ChASE (Chebyshev Accelerated Subsapce Eigensolver), a numerical library designed for solving large and complex eigenvalue problems on distributed computing systems.
The principles shown in this course apply to all clusters and supercomputers. However, each system may have its own software stack, hardware architecture and memory configuration.
A typical cluster workflow
The basic steps are the following:
Authentication (this step is done only once, at the first login).
Generating SSH keys.
Copy public key to the remove server.
Connect to remote server using secure shell protocol (SSH).
Copy your data using secure copy (e.g. scp, rsync).
Prepare a script that describe how your application and data will be executed.
Allocate resources and submit your job using job and resource management system (e.g. SLURM, PBS).
Once the job is finished, retrieve output data.

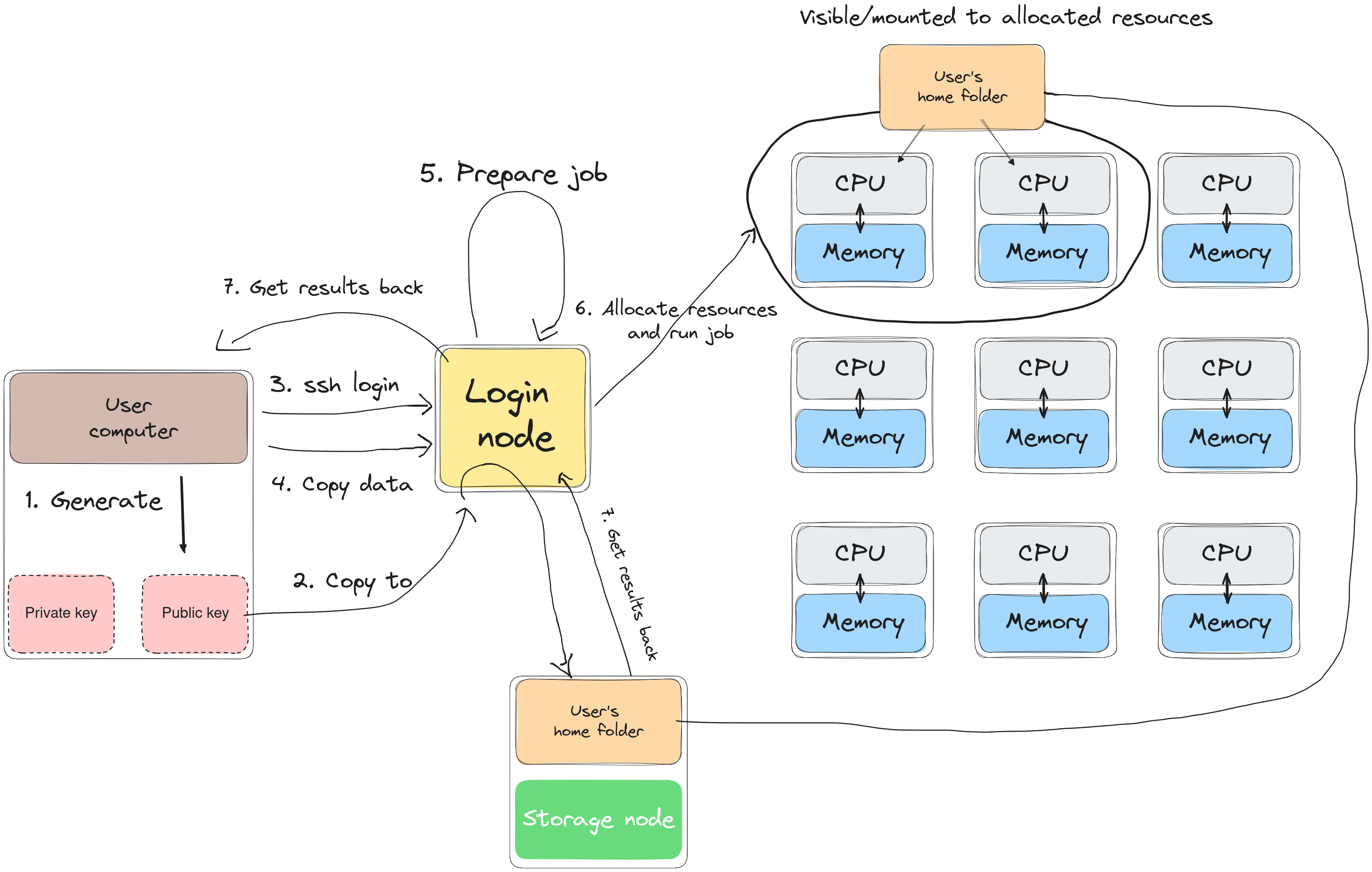

An example of a typical HPC workflow.
Generate SSH keys
The first step is to authenticate the computer that you will use to access the cluster. In this demonstration, we will show you how to generate SSH keys via command line. You acn find more options in the Supek documentation under ‘Pristup klasteru Supek’.
Upload public-key
After you have generated the key pairs, you must upload the public key (with the extension *.pub) to your account on compute.srce.hr. Once it is uploaded, it will be automaticaly copied to the home folder.
Loggin to the cluster (login node)
To log in to Supek, connect to the GPU login node: login-gpu.hpc.srce.hr using ssh specifying your username and the path to your private key file.
As soon as you are logged, all interaction with the cluster will take place via the login node, as direct access to the compute nodes is not possible.
Copying files
Data transfer between a local computer and the cluster (i.e. login node) can be done either with graphical and command line tools, as long as they support secure transfer protocols. Examples are MobaXterm or WinSCP for Windows or the command line tools scp and rsync for Linux.
An example of copying files from the local computer to the Supek using the command line tool scp.
The example shows how the entire content of the folder TiO2 is transferred from the local computer to the folder DATA on the Supek login node.
Job queues
The compute nodes are organised in job queues depending on their intended use. There are nine job queues on Supek, each of which is optimised for certain types of jobs. The following commands should be executed from the Supek login node.
To list all available queues on the system, run:
qstat -Q
To display all running and pending (waiting) jobs in the gpu queueu, use the following command:
qstat -p gpu
Dispaly a complete list of nodes, including their utilisation and the jobs currently running on them:
pbsnodes -aSj
Prepare working environment on the login node
In HPC clusters, several users often run different applications at the same time. Therefore, the applications in your working environment are not activated by default, but the users have to load it by themselves. This allows users to:
Isolate their software environments for specific application/data requirements,
Easily switcg between different application versions (e.g. a researcher may need both Python 2.7 and 3.8 for different applications),
Manage dependencies effectively and minimise conflicts.
A widely used tool for managing pre-installed applications in HPC environments is Modulefiles. The primary command is module, and changes to the environment variables only apply to the current user session.
The module list command displays the loaded modules and shows which applications are active in your environment. In this case, only one module – Python 3.10 – is loaded, as it is required for the asciinema tool used to record the terminal session.
To see all available modules installed on the system, use module avail. If you need to search for a specific module, module spider pytorch lists all available version fo the PyTorch framework – in this example, four versions are pre-installed. Finally, to check what changes a particular module (e.g. pytorch/2.0.0) would make to your environment before you load it, you can view the details.
The following video demonstrates the loading of several modules required to run our code.
Prepare and submit job
Since our example application, the ChASE library, is not pre-installed on the system, we must first download it from the GitHub repository.
git clone https://github.com/ChASE-library/ChASE.git
and compile it using the cmake command (the commands are listed in the gnu-activate.sh files):
cmake -B build-gnu-test \
-DBUILD_WITH_EXAMPLES=ON \
-DCHASE_OUTPUT=ON \
-DCMAKE_CXX_COMPILER=CC \
-DCMAKE_C_COMPILER=cc \
-DCMAKE_Fortran_COMPILER=ftn \
-DCMAKE_CUDA_COMPILER=nvcc -DCMAKE_CUDA_FLAGS="--allow-unsupported-compiler"
cmake --build $folder
The cmake searches for the reqired software dependencies and generates a Makefile (the first run of cmake). In the second run, it compiles (builds) the application. The resulting executable files are located in the build-gnu-test directory under examples subfolder.
Once ChASE is compiled, we can create a simple script to define our job.
In the script, we define the job parameters that the scheduler requires for resource allocation (lines beginning with the keyword #PBS). The remaining lines contain standard Linux commands to set up environment variables, load necessary modules and define paths. Finally, the ChASE executable is started with mpiexec, which executes the program in parallel on 4 parallel processes, each of which uses a separate GPU device.
Check job status
The status of the job can be checked with the following command:
qstat -u testUser
This command only displays the active and pending jobs of the user with the username testUser.
